Overview

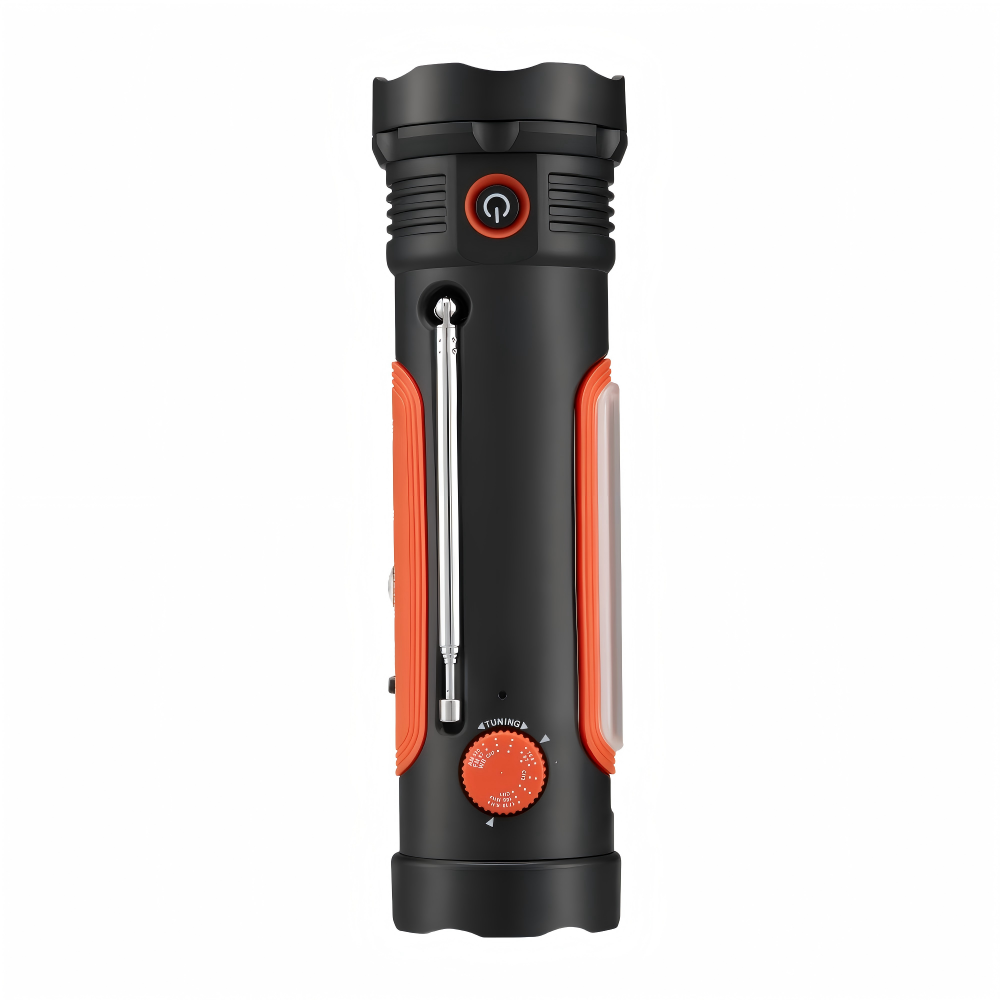

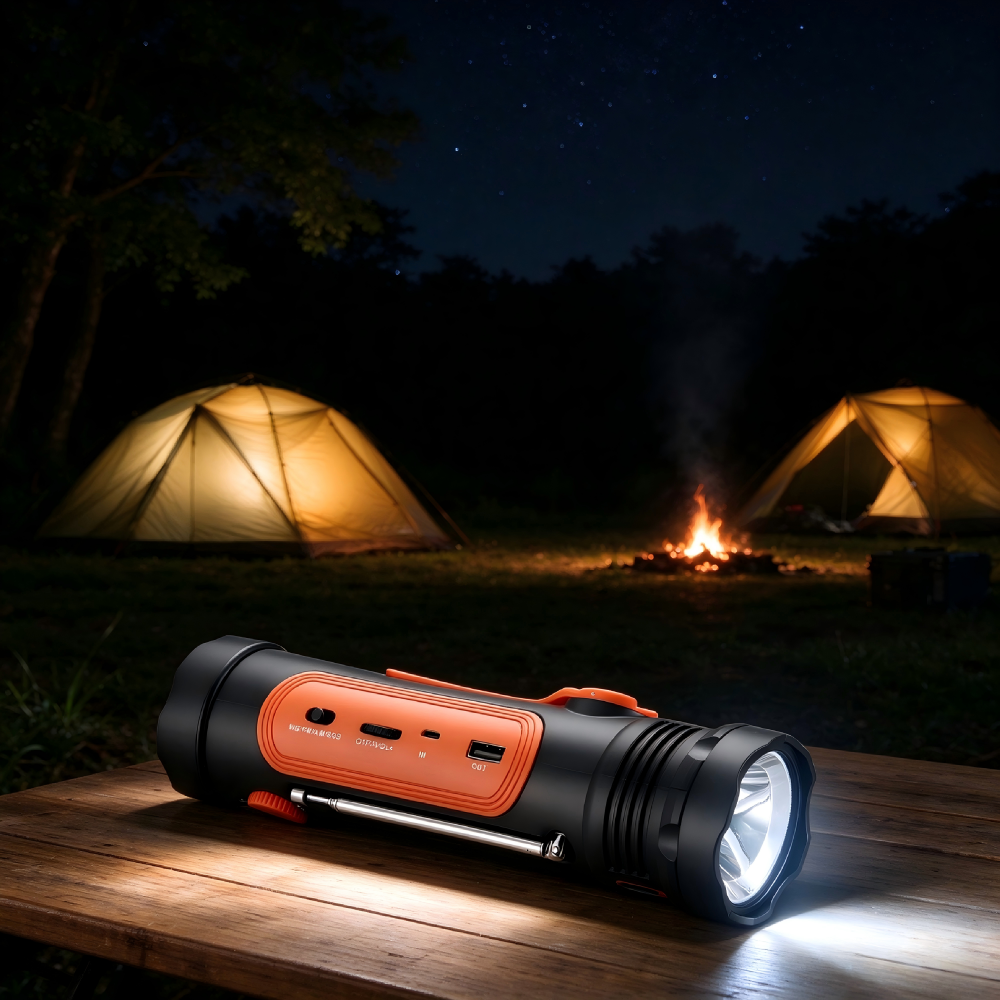

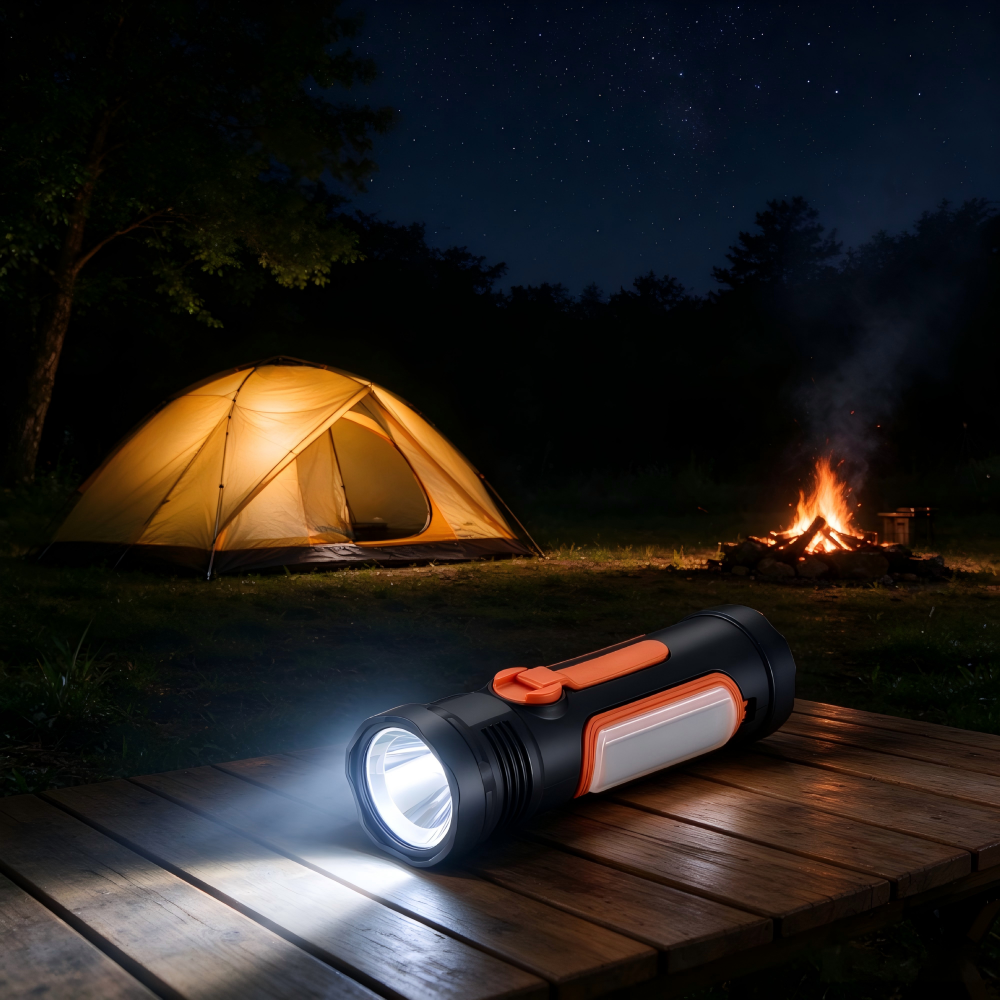

PI‑TOR‑001 (Model RF200) is a self‑powered multi‑function emergency radio flashlight SKD (Semi‑Knocked‑Down) kit, integrating LED flashlight, foldable desk lamp, AM/FM/WB radio, weather‑alert receiver, 2600mAh power bank and SOS alarm into one device. It is purpose‑built for Indian B2B small‑scale manufacturers, assemblers, and resellers in the emergency / outdoor / household electronics segment.
Buyers can purchase the full complete SKD assembly kit, or select individual components separately (housing, battery, hand‑crank generator, light set, antenna, PCBA, speaker, USB cable) according to your local production plan. After simple local assembly in India, you can sell finished self‑powered multi‑function flashlights under your own business to local retail channels.
The core hardware includes ABS+PC plastic housing, 18650 Li‑ion 2600mAh battery, hand‑crank generator, FR‑4 94V‑0 PCBA, high‑clarity speaker, lighting assemblies, telescopic + MW antenna and USB charging cable. The unit features three independent charging methods (USB adapter / solar panel / hand‑crank generator), making it an off‑grid reliable power & emergency lighting solution.
Important reminder: This is an SKD kit, NOT a pre‑assembled finished consumer‑ready flashlight. Final assembly, functional testing, branding, packaging must be completed on buyer’s side within India.
Core Product Specifications
| Item | Details |
|---|---|
| SKU | PI‑TOR‑001‑ALL‑BK (Variable product: full kit + component options) |
| Model | RF200 Self‑Powered Multi‑Function Radio Flashlight |
| Kit Type | SKD (Semi‑Knocked‑Down), variable configuration |
| Battery Cell | Li‑ion 18650, 2600mAh (±5%) / 3.7V / 9.62Wh |
| Battery Protection | PCBA built‑in battery protection function |
| Charging Input Port | Micro USB (5V) |
| Power Output Port | USB‑A 5V/1A ×1 (power bank output) |
| Charging Methods | 3 ways: USB adapter / solar panel / hand‑crank generator |
| USB Charging Time | < 4 hrs to full |
| USB‑A Output | 5V ±0.3V, 1000mA |
| Micro USB Input | 5V ±0.5V, 1000mA |
| Capacity Indicator | 3‑color LED (green / yellow / red) |
| Flashlight LED | 1 × 1W white LED (torch & siren blinking) |
| Desk Lamp LED | 10 × 0.5W white LEDs, 90° foldable |
| Luminous Flux (1m) | ≥ 130 lm |
| Radio Frequency | AM 520kHz–1710kHz; FM 87–108MHz; WB (US weather band) |
| Dynamo (Generator) | AC motor, hand‑crank, CW & CCW charging |
| Solar Panel | 5V / 30mA; 84 × 19mm |
| Speaker Output | 0.5W |
| Siren & Blink Color | White |
| Case Material | ABS + PC |
| PCB Anti‑Flammability | UL 94‑V0 |
| Current Leakage (off) | < 100 µA |
| Product Size | 218 × 65.8 mm |
| Product Weight | 430 g |
| In Box (Full Kit) | Host ×1, Micro USB cable (25±5cm) ×1, instruction manual ×1 |
| Color Box (Packing) | 67 × 67 × 225 mm |
| Working Temp / Humidity | −10℃ ~ 45℃, 5–95% RH |
| Storage Temp / Humidity | −20℃ ~ 70℃, ≤70% RH |
| Certifications | FCC, CE, RoHS 2.0, WERCS, EMC; Battery: UN38.3, MSDS (shipping‑safe) |
Component & Variation Options
This is a variable SKD product. You can order the complete assembly kit or pick any single component below:
| Option | SKU | Description |
|---|---|---|
| Full SKD Assembly Kit | PI‑TOR‑001‑ALL‑00 | Complete set: ABS+PC housing, 18650 battery, hand‑crank generator, FR‑4 94V‑0 PCBA, speaker, lights, antenna, USB cable |
| Housing Shell | PI‑TOR‑001‑PLS‑00 | ABS+PC plastic shells (front cover, base, lamp barrel, solar & lamp covers, knobs, crank, etc.) |
| Battery | PI‑TOR‑001‑BAT‑00 | 18650 Li‑ion 3.7V 2600mAh rechargeable cell |
| Hand‑Crank Generator | PI‑TOR‑001‑HCG‑00 | 3‑phase AC line voltage 5.2VAC; rated speed 3000±150 r/min; rated current ≥ 300mA; charges in both CW & CCW |
| Light Set | PI‑TOR‑001‑LGT‑00 | Long‑range torch LED + foldable desk lamp LED assembly |
| Antenna | PI‑TOR‑001‑ANT‑00 | Telescopic whip antenna + MW (medium‑wave) built‑in antenna |
| PCBA | PI‑TOR‑001‑PCB‑00 | Main board FR‑4 94V‑0 double‑sided PCB + button board FR‑4 94V‑0 single‑sided PCB |
| Speaker | PI‑TOR‑001‑SPK‑00 | 8Ω 0.5W high‑clarity speaker |
Key Product Features for B2B Assemblers
Three Independent Off‑Grid Charging Methods

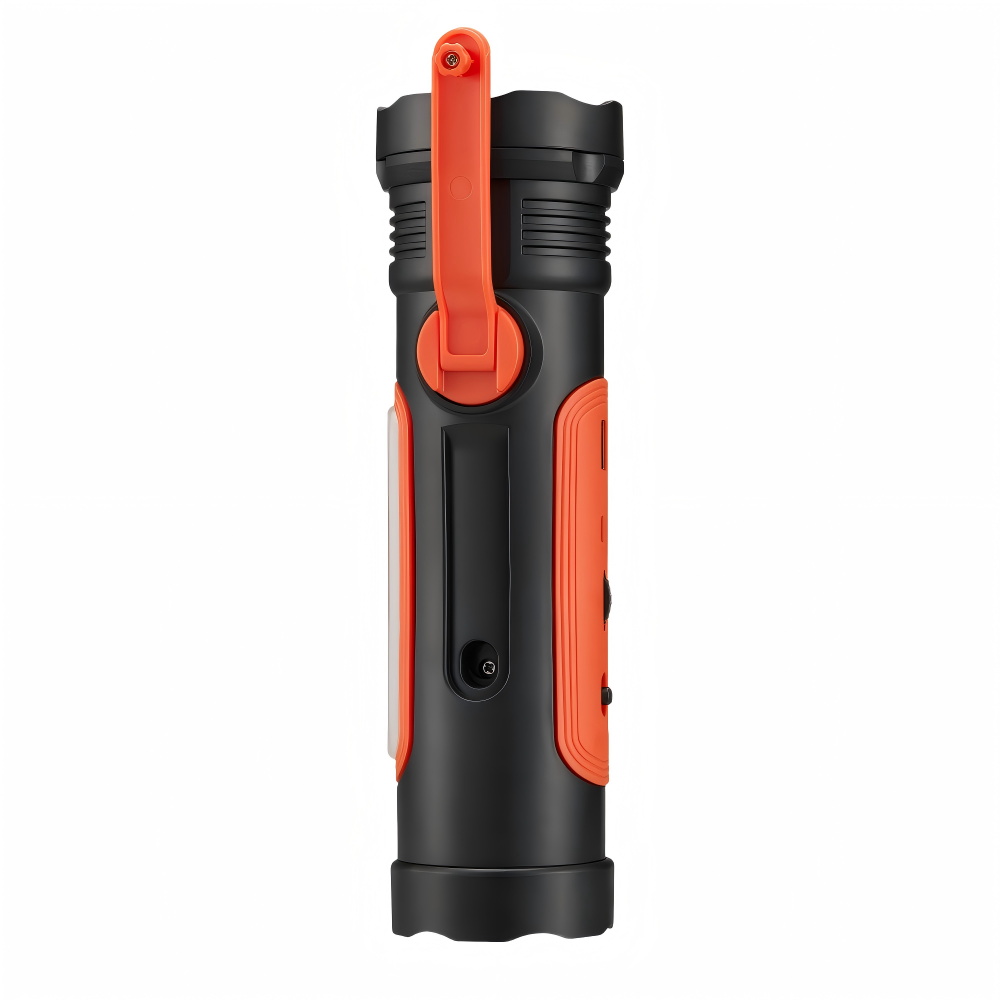

The hardware supports three ways to recharge the built‑in battery: USB adapter charging, solar panel charging under direct sunlight, and hand‑crank generator charging (pull out the crank and rotate continuously). After assembly, finished units can be recharged even without grid power, making them suitable for power outages, camping, travel and emergency preparedness in the Indian market.
2600mAh Power Bank for Device Charging
Equipped with a USB‑A 5V/1A output port. After assembly, the finished flashlight can charge mobile phones and other standard USB digital devices, functioning as a 2600mAh emergency power bank — a practical everyday and emergency utility for end‑users.
AM/FM/WB Radio with Weather‑Alert Receiver
Built‑in radio hardware covers AM (520kHz–1710kHz), FM (87–108MHz) and WB (US weather band). The WB function allows finished units to receive NOAA‑style weather broadcasts, helping users prepare ahead for adverse weather. Extending the telescopic antenna improves signal reception.

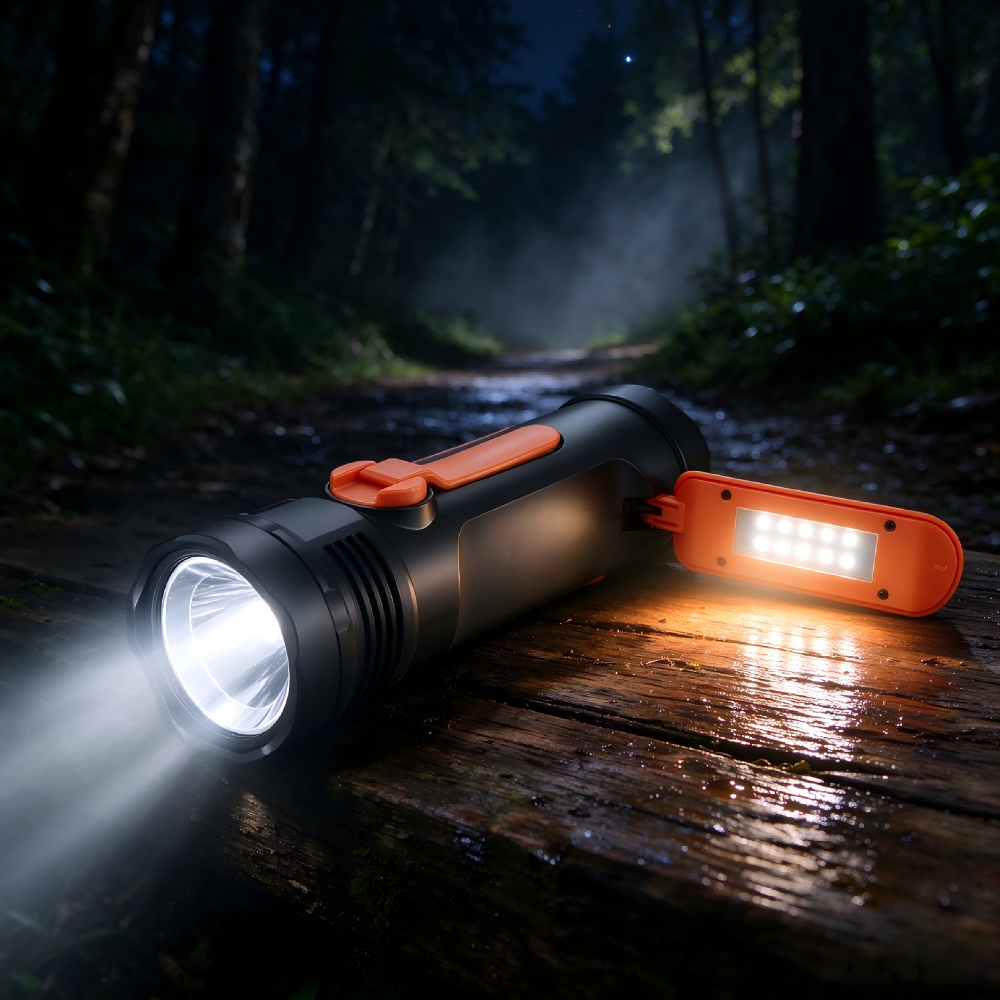

Dual Lighting: Flashlight + 90° Foldable Desk Lamp
Single‑press power button cycles through torch light → foldable desk lamp → off. The torch uses 1 × 1W white LED for long‑distance illumination; the desk lamp uses 10 × 0.5W white LEDs and can be folded out 90° for area lighting. Covers both spot and ambient lighting needs.
SOS Emergency Alarm + Flashing Light
Slide the function switch to SOS mode: the flashlight flashes continuously while the speaker emits a loud siren alarm. A useful safety feature for outdoor, roadside and emergency scenarios.
Safety & Reliability Hardware
PCBA includes battery protection function. PCB and case meet UL 94‑V0 anti‑flammability requirement. Low standby leakage current (< 100 µA) helps preserve battery life. Case materials ABS + PC provide balanced durability and cost for mass‑market finished goods.
Target Buyer & Suitable Audience
This SKD kit is designed exclusively for Indian B2B business customers, including small local assembly workshops & mini factories doing domestic assembly of emergency / outdoor / household electronics, traders and importers planning local India finishing and resale of multi‑function radio flashlights, brand owners and private label operators building emergency‑preparedness and outdoor product lines, distributors supplying semi‑finished appliance components to regional assembling partners.
This listing is NOT for individual retail end‑users. If you are looking for a ready‑to‑use finished radio flashlight for personal use, this SKD kit product is not suitable for you.
Function Introduction
This SKD kit provides all core functional hardware to build a complete self‑powered multi‑function radio flashlight after your local assembly work. Press the power button once to turn on the torch, press again to activate the foldable desk lamp, and press a third time to switch off. Slide the function switch to select AM / FM / WB radio bands or SOS alarm mode; in SOS mode only the torch light (flashing) and speaker (siren) operate. The volume knob turns the radio on/off and adjusts volume. The USB‑A port delivers 5V/1A output to charge external devices. The battery can be recharged via Micro USB, solar panel, or hand‑crank generator, with a 3‑color LED showing remaining capacity.
All final functional testing, radio reception verification, battery‑protection validation, mechanical inspection and safety checks must be completed by buyer during local assembly process in India.
Certifications & Compliance
- Host certifications: FCC, CE, RoHS 2.0, WERCS, EMC (EMC test certificate available).
- Battery certifications: UN38.3 (lithium battery transport test), MSDS (material safety data sheet), UL.
- Shipping‑safe documentation available for both sea and air transport (BY SEA / BY AIR transport certificates).
- Product standard: ANSI/NEMA FL1‑2009; all materials meet RoHS environmental requirements.
Important Notes & Disclaimers
SKD Kit Definition: Goods are supplied as semi‑knocked‑down components. No final assembly, no final functional test done at our side. All assembling work, radio tuning verification, quality inspection, finished‑goods safety testing is full responsibility of buyer in India.
We supply core components per the selected configuration. For the full kit, it includes ABS+PC housing, 18650 battery, hand‑crank generator, FR‑4 94V‑0 PCBA, speaker, lights, antenna and USB cable. Retail color box and display stand are NOT automatically included unless explicitly added to your order. Please confirm required accessories, packaging and component configuration before placing order.
WB (weather band) radio reception is for US weather band region only; actual reception in India depends on local broadcast availability and antenna deployment.
This product is NOT waterproof. Do not immerse in water or place in highly humid, dusty environments. Avoid shining the light directly into eyes.
The built‑in 18650 battery is a hazardous-goods item for shipping; UN38.3 and MSDS documentation is available for air/sea transport clearance. Scrapped products with built‑in batteries must be handled according to regulations and must not be disposed of as household garbage.
Battery storage note: if the battery has been stored for more than half a year, charge and discharge it once with a charger within the specified parameter range before use.
Product weight, luminous flux and model data follow the official technical specification sheet. Actual finished‑unit performance may vary subject to local assembly quality and component matching.
Frequently Asked Questions
What is SKD for this radio flashlight? SKD (Semi‑Knocked‑Down) means you receive separate major core components including housing, battery, hand‑crank generator, PCBA, speaker, lights and antenna. You perform final assembly within India, then you can sell finished multi‑function radio flashlights locally. It is not a ready‑to‑use finished flashlight.
Can I buy only one single part instead of full kit? Yes. PI‑TOR‑001 is a variable product. You may select the full SKD assembly kit or any individual component (housing / battery / hand‑crank generator / light set / antenna / PCBA / speaker). Please note minimum order quantity rules apply for separate parts, contact our sales for exact MOQ details.
What are the three charging methods? USB adapter charging (via Micro USB port, ~<4 hrs to full), solar panel charging (place under direct sunlight), and hand‑crank generator charging (rotate the crank CW or CCW). After assembly, the finished unit can be recharged without grid power.
What is the WB weather‑band function? WB (weather band) allows finished units to receive weather broadcasts for early weather awareness. It is designed for US weather band region; reception depends on local broadcast availability and antenna deployment.
How is the flashlight / desk lamp operated? Press the power button once for torch light, again to open the foldable desk lamp (foldable out 90°), and a third time to switch off.
Does this product hold safety and shipping certifications? Yes. Host holds FCC, CE, RoHS 2.0, WERCS, EMC certifications; battery holds UN38.3, MSDS and UL. Shipping documents for both sea and air transport are available.
Is this suitable for retail end‑user purchase? No. This is a B2B semi‑finished assembly kit for business assemblers. It cannot be used directly without local assembly work.
Is the product waterproof? No. This product is not waterproof. Avoid immersion in water and exposure to highly humid or dusty environments.
Our B2B Advantage for Indian Assemblers
Flexible ordering: full‑kit or split component purchasing adapts to different‑size assembly‑business needs. Differentiated self‑powered product with 3 charging methods, radio, lighting, power bank and SOS in one device gives your finished goods strong emergency / outdoor selling points. Well‑documented compliance and shipping certificates (FCC, CE, RoHS, UN38.3, MSDS, BY AIR / BY SEA) simplify your import and transport workflow. Clear component list, you know exactly which hardware you receive; no hidden or undefined parts in the SKD supply.
Inquiry Information
For MOQ, unit price, stock status, packaging (color box / display stand) and further component quotation, please send inquiry via our contact form. Tell us whether you require full SKD kit pricing or pricing for separate individual components.
